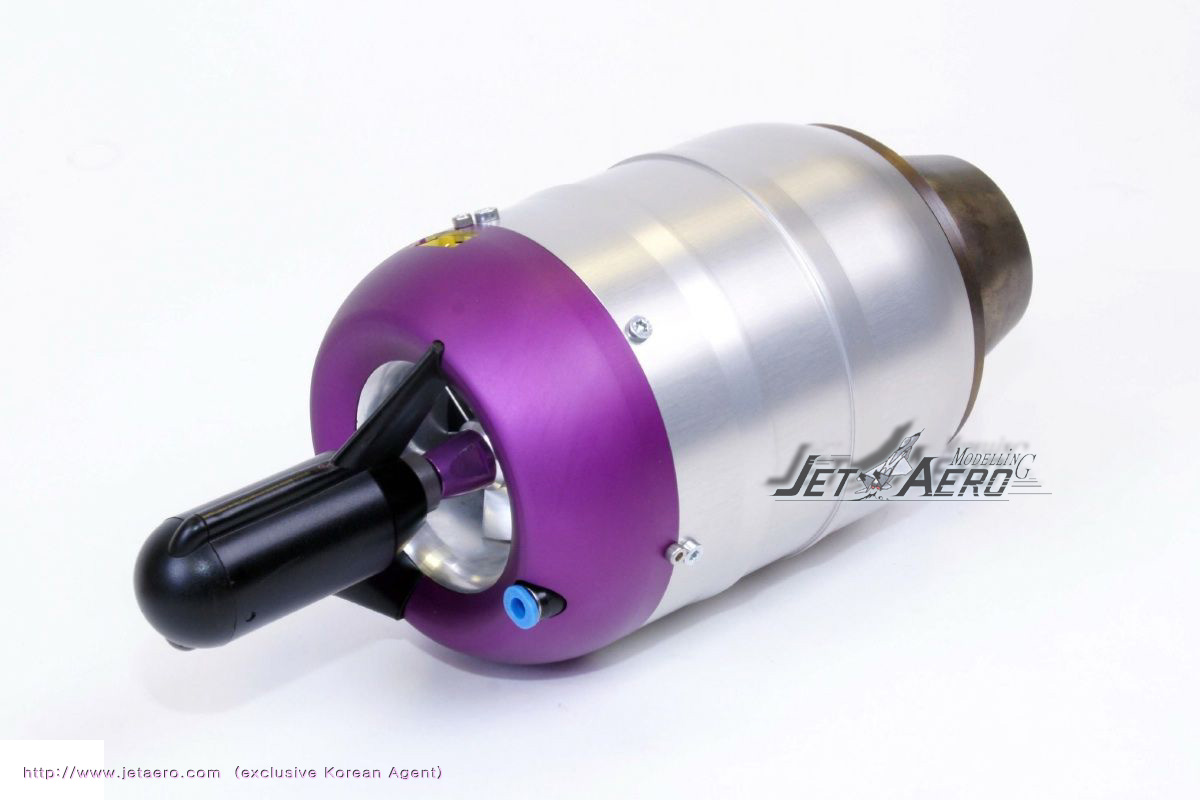

Featuring JetCat¡¯s new fully digital ¡°bus¡± electronic control system,
the new generation of RX series JetCat turbines reduce the wiring and tubing to a minimum, making installation easier.
The temperature sensor is installed internally, but still can be replaced if necessary.

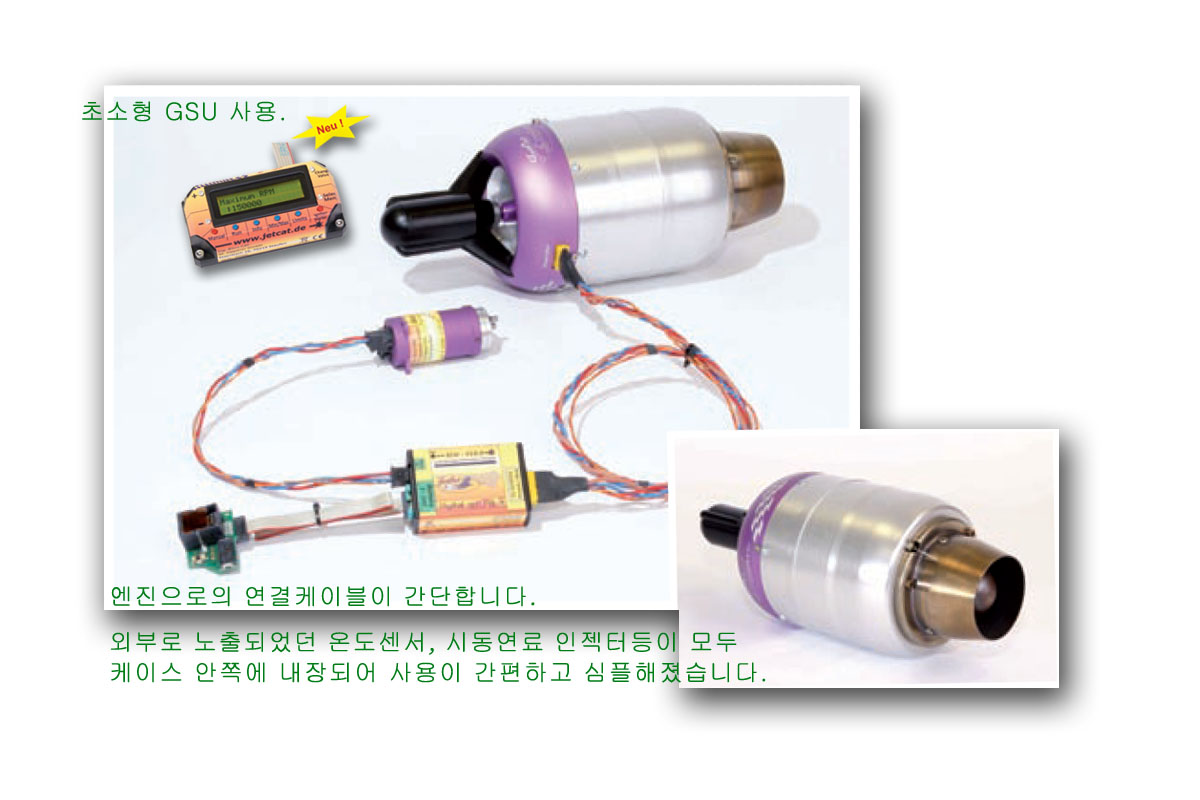

The valves are fully integrated inside the turbine front housing, so only a single tube connection from the pump to the turbine is necessary.
Additionally the electrical connection from the turbine to the ECU, also involves only a single PowerBus lead.
(±âÁ¸¿¡ ¿ÜºÎ¿¡ ¿¬°áÇØ¾ß Çß´ø ¹ëºê, ÇÊÅÍ µîµîÀ» º¹ÀâÇÏ°Ô ¿¬°áÇÒ ÇÊ¿ä°¡ ¾ø½À´Ï´Ù. »çÁø°ú °°ÀÌ ½ÉÇÃÇÏ°Ô ¿¬°áÇÏ½Ã¸é ³¡~ ÀÔ´Ï´Ù.
»çÁø¿¡¼ ¿£Áø Á»óÃøÀÇ ¿øÅë¸ð¾çÀÇ Á¦Ç°ÀÌ ½º¸ðÅ©ÆßÇÁÀÌ°í, ±× ¾Æ·¡ Á¶±Ý ÀÛÀº Á¦Ç°ÀÌ ¿¬·áÆßÇÁÀÔ´Ï´Ù. ½º¸ðÅ©ÆßÇÁµµ º°µµÀÇ Àü¿ø¿¬°áÀÌ ÇÊ¿ä¾ø½À´Ï´Ù.)
The new light weight and small V10.0 JetCat ECU (26g and 2/3rds size) require only the receiver (1 or 2 channel operation) and the fuel pump to be connected.
All of the latest options e.g. ECU V6.0 GSU connection, GPS and Airspeed sensor input/output, Smoke control will still be available.
The power supply is
provided by a 3S 2100mAh LiFePO4 battery.
This not only powers the ECU and fuel pump, but also all optional accessories connected to the bus system, such as the JetCat Smoke Pump and or LCU (lighting control Unit).
Alternatively, the V10.0 ECU can be supplied for operation with a 2S/3S Li-po or 6-8 cell Ni chemistry battery.
(Àü¿øÀº 3S A123 ¹èÅ͸®¸¦ »ç¿ëÇÏ½Ç ¼ö ÀÖ°í, ¹°·Ð ±âÁ¸ÀÇ 2S ¶Ç´Â 3S ¸®Æ¬Æú¸®¸Ó, 6~8¼¿ ´ÏÄ«µå/¸ÞÅ»¼ö¼Ò ¹èÅ͸®µµ »ç¿ë°¡´ÉÇÕ´Ï´Ù.)
The V10.0 ECU also has a built-in,
precision air pressure and temperature sensor which intelligently adjusts to the
current environmental conditions.
This also eliminates the setting of the pump start voltage. The engine starts and runs on kerosene.
(´ç¿¬È÷ Ç×°øÀ¯ Á÷Á¢ ÀÎÁ§¼Ç ½Ãµ¿¹æ½ÄÀ¸·Î¼, ȯ°æÀÇ º¯È¿¡ ´Éµ¿ÀûÀ¸·Î ´ëÀÀÇϹǷÎ, ¹Ì¼¼ÇÑ Á¶Àýµµ ÇÊ¿ä¾ø°Ô µÇ¾ú½À´Ï´Ù.)
